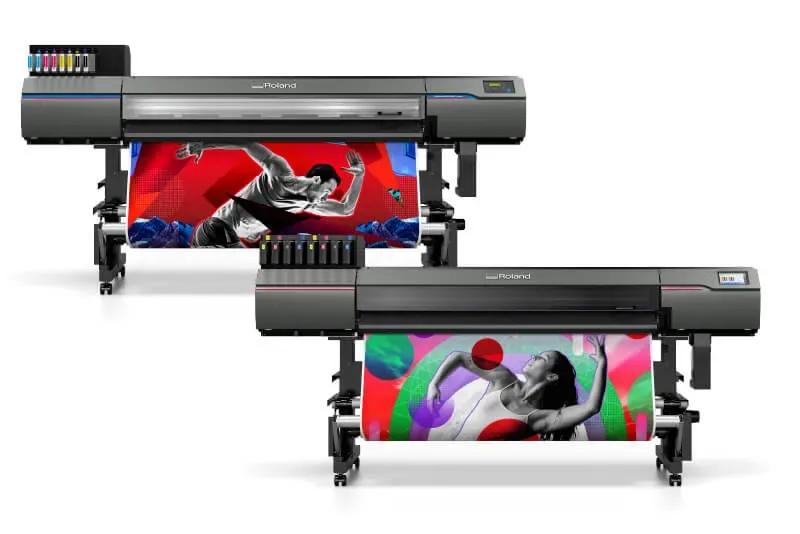

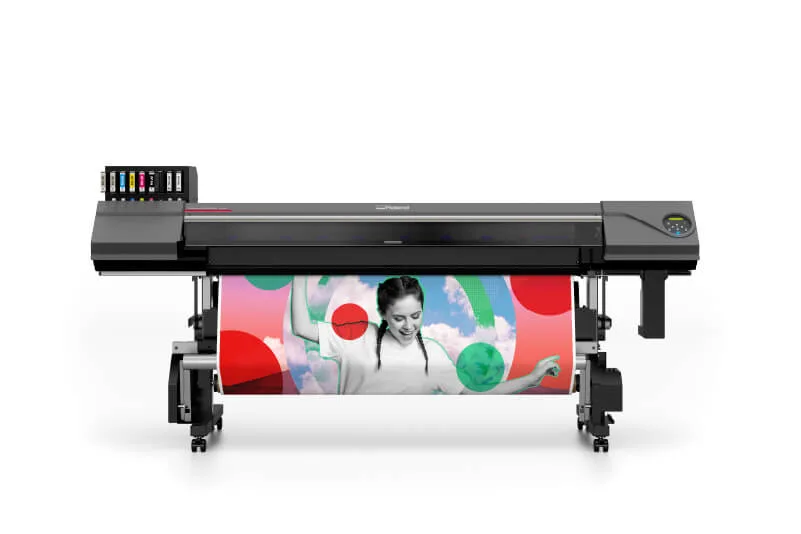

Roland DG UG-641 — UV printer/cutter

Name: Roland DG UG-641 — UV printer/cutter
Brand: Roland DG
SKU: UG-641

Roll-fed UV printer/cutter for stickers, labels and display graphics. Up to 1,600 mm print width, with white ink and gloss capabilities depending on the ink configuration.

Enquiry

Manufacturer code: UG-641UG-641On request

Overview

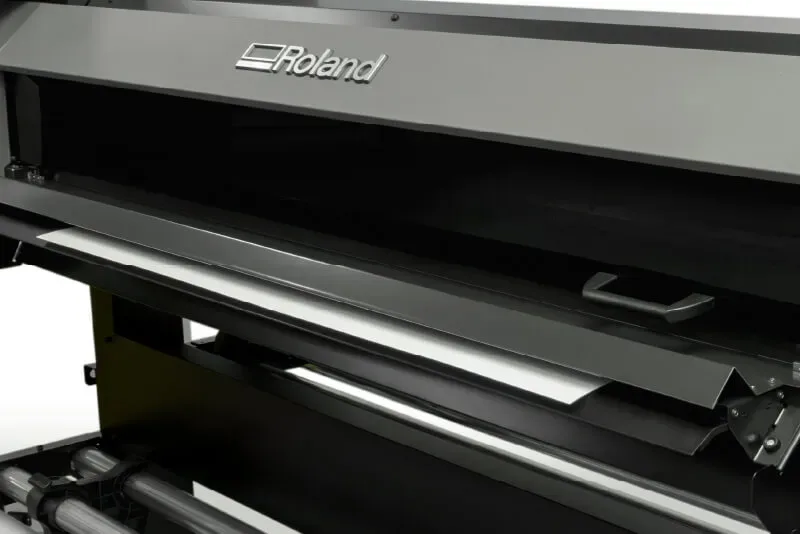

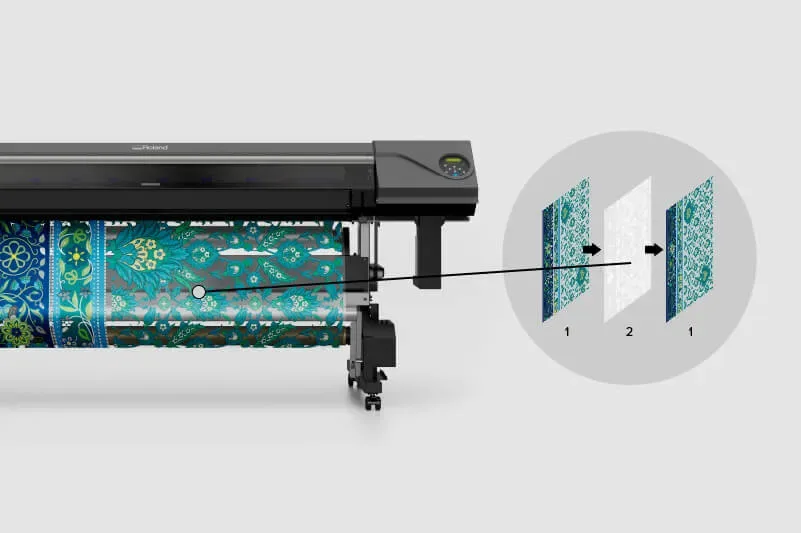

The Roland DG UG-641 combines UV LED printing and contour cutting in one device. It suits stickers, labels, window graphics and packaging prototypes where both the printed image and its cut shape matter. D-UA ink is cured by built-in UV LED lamps. White ink can provide a covering layer on clear or dark substrates, while gloss creates highlights and textures. Select the ink set around the intended work: these capabilities are not shared by every configuration. The printer accepts media from 210 to 1,625 mm wide, with a maximum printing and cutting width of 1,600 mm. Maximum thickness is 1 mm including the liner for printing, and 0.4 mm including the liner or 0.22 mm without it for cutting. Test substrate suitability and adhesion before production. The TU4 take-up unit and ET-64 extension table are optional accessories.

What it suits

UV LED printing and contour cutting in one device.
Maximum printing and cutting width: 1,600 mm.
Up to 1,440 dpi print resolution; results depend on mode and media.
White ink and gloss depend on the selected ink configuration.

Documents

Datasheet

Related products

The whole category

Manufacturer

Roland DG

Roland DG manufactures wide-format printers, integrated print-and-cut systems, cutting plotters, engravers and milling equipment. These equipment groups serve sign production, textile decoration, product personalisation and industrial applications. When choosing equipment, first distinguish between printing alone, printing with cutting, and material processing through engraving or milling. An integrated print-and-cut system performs both operations in one machine, while a separate cutting plotter provides an independent workstation. The appropriate model depends on the material, workpiece format and planned production process.
