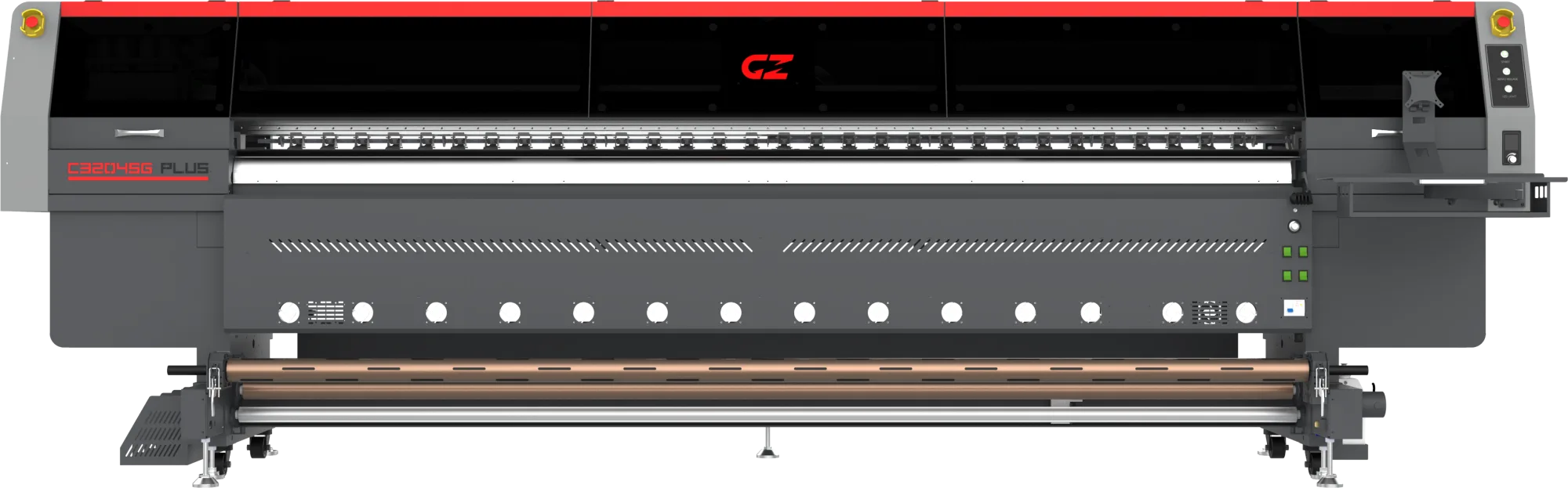

GONGZHENG GZS3204 PLUS printer illustration

GONGZHENG · Textile printers

GONGZHENG GZS3204 PLUS — industrial dye-sublimation printer

A 3,200 mm sublimation printer with four StarFire 1024 heads. Select the ink, textile or transfer paper and finishing process as one workflow.

colour configuration: CMYK
drying system: Rear heater + dual IR
media types: Polyester textile / transfer paper / wallpaper
draft speed (m²/h): 241
high-resolution speed (m²/h): 130

Manufacturer code: GZS3204 PLUSGZS3204 PLUSOn request

Overview

The GZS3204 PLUS is a 3,200 mm sublimation printer with four StarFire 1024 heads and a 10 pl nominal droplet size. Its catalogue lists polyester textile, transfer paper and wallpaper as media categories; the actual ink, media coating and finishing process must be selected together. Manufacturer modes are 241 m²/h Draft, 168 m²/h Production and 130 m²/h High-Res. Rear heating and dual IR drying are part of the media-drying system. At 5,066 × 1,151 × 1,717 mm and 1,180 kg, the machine requires installation planning beyond its print width: access, roll handling and working space also matter.

What it suits

Four StarFire 1024 heads, 10 pl.
3,200 mm print width; rear heating and dual IR drying.

Specifications

Colour

colour configuration: CMYK

Drying

drying system: Rear heater + dual IR

Media

media types: Polyester textile / transfer paper / wallpaper

Performance

draft speed (m²/h): 241
high-resolution speed (m²/h): 130
production speed (m²/h): 168

Physical

dimensions: 5066 × 1151 × 1717 mm
weight (kg): 1180

Printing

print heads: 4 × StarFire 1024, 10 pl

Resolution

resolution modes (dpi): 600 × 400 – 600 × 1600

Work area

maximum print width (mm): 3200

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.
