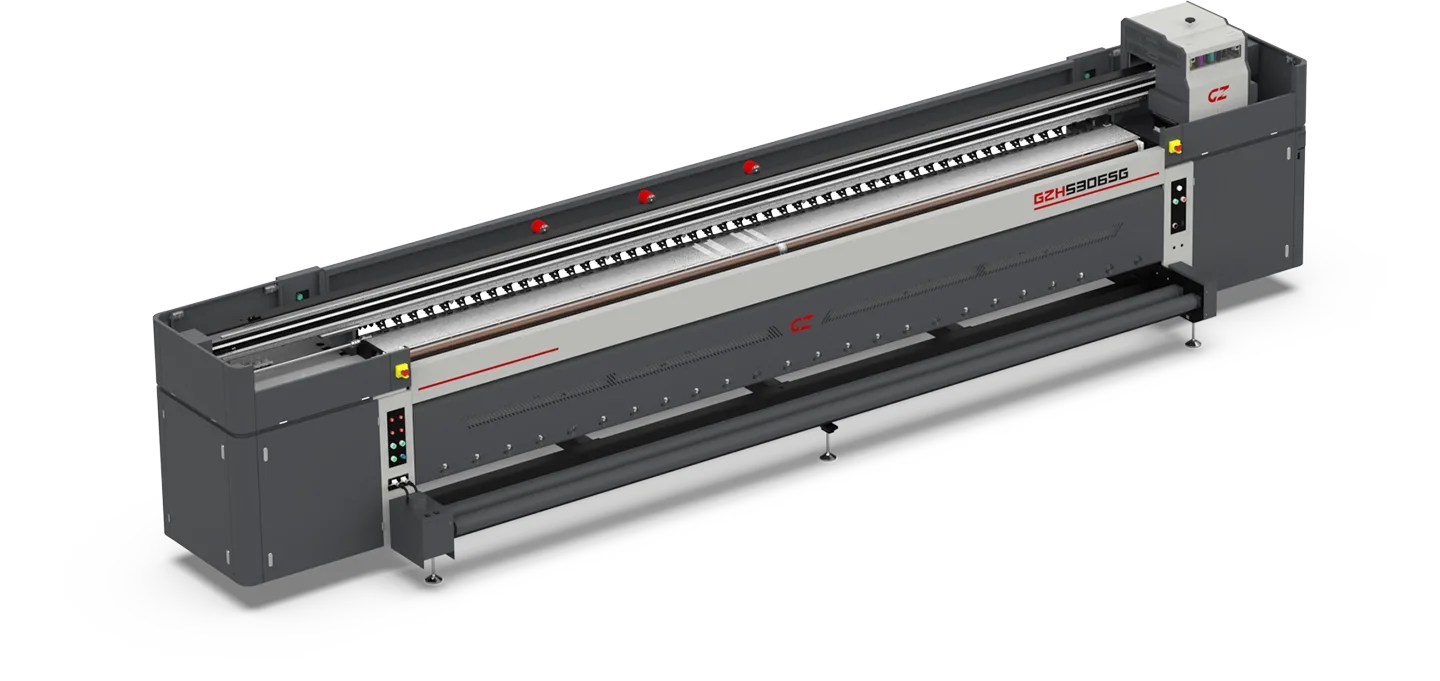

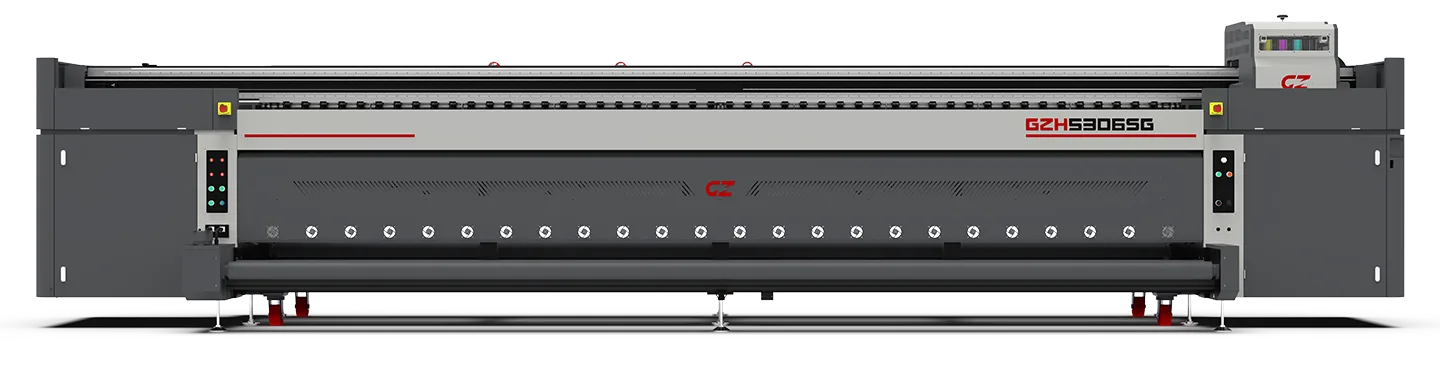

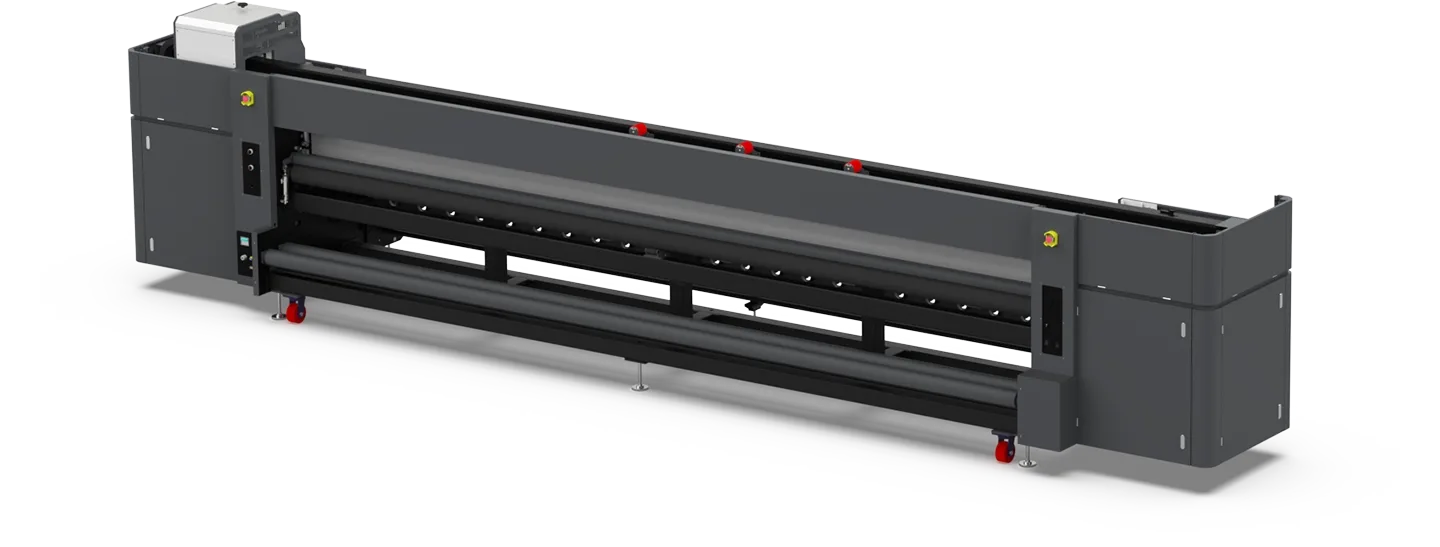

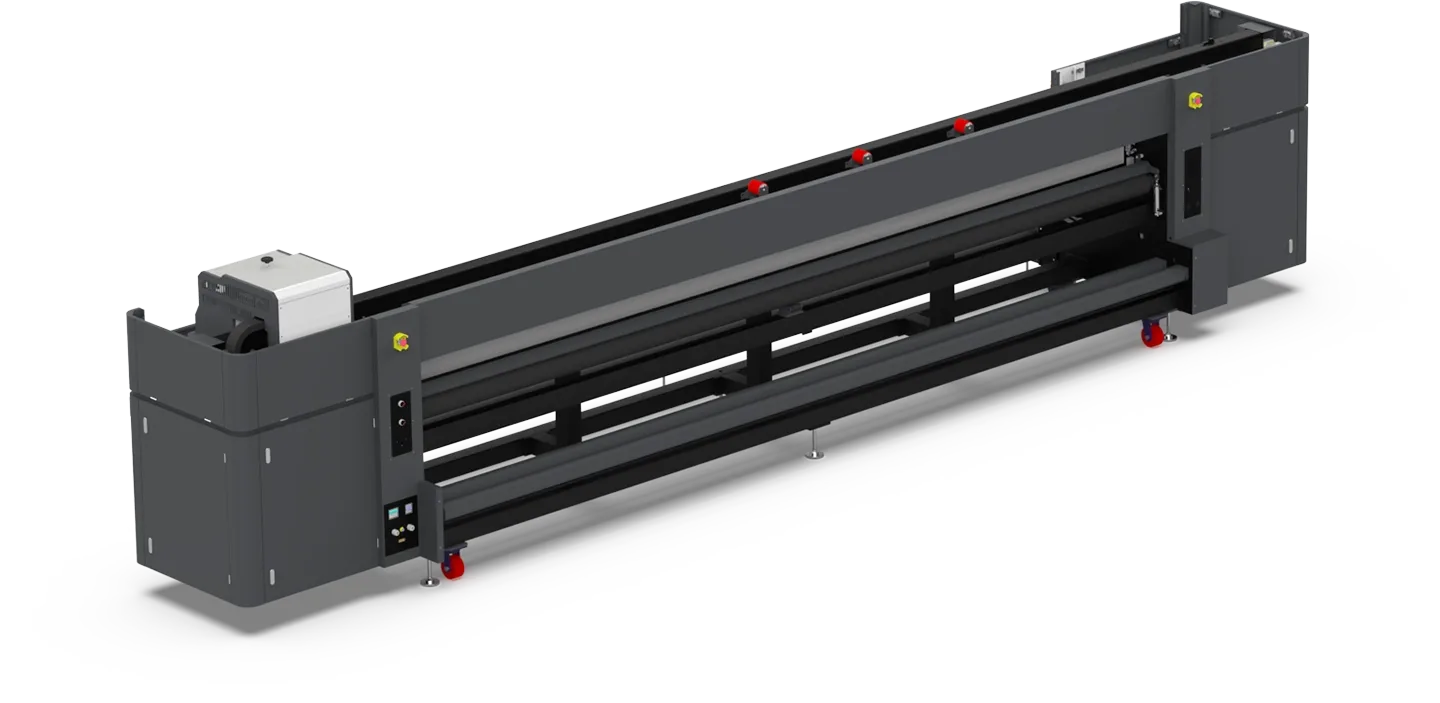

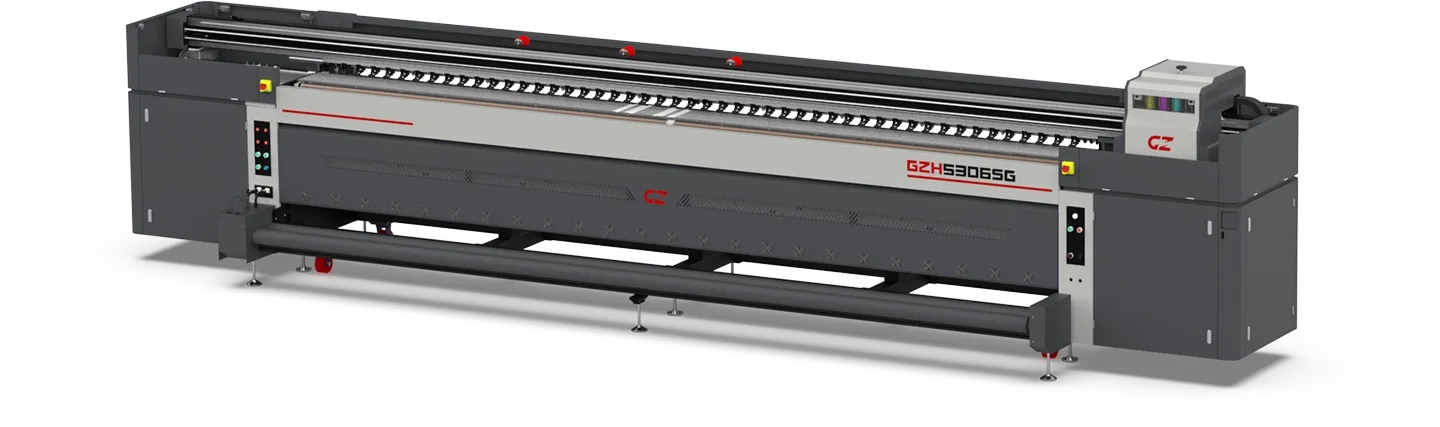

GONGZHENG GZH5306SG — wide-format solvent printer

A 5,300 mm solvent printer for large roll-fed graphics, with six staggered StarFire 1024 heads.

ink type: Solvent / eco-solvent inks
productivity modes (m²/h): 435 / 275 / 216
dimensions: 7550 × 1800 × 1515 mm
weight (kg): 2700
print heads: 6 StarFire 1024, staggered

Manufacturer code: GZH5306SGGZH5306SGOn request

Overview

The GZH5306SG is intended for large-format roll printing up to 5,300 mm wide. Six staggered StarFire 1024 heads form the printing system; solvent or eco-solvent ink selection belongs to the chosen configuration. The catalogue lists 435, 275 and 216 m²/h print modes. Compare output at the required print setting rather than treating the maximum as a universal production rate. Installation dimensions are 7,550 × 1,800 × 1,515 mm and the listed weight is 2,700 kg. Plan access, floor loading, working clearance and ventilation for the selected ink system before ordering.

What it suits

Print width up to 5,300 mm.
Six staggered StarFire 1024 heads.

Specifications

Ink system

ink type: Solvent / eco-solvent inks

Performance

productivity modes (m²/h): 435 / 275 / 216

Physical

dimensions: 7550 × 1800 × 1515 mm
weight (kg): 2700

Printing

print heads: 6 StarFire 1024, staggered

Work area

printing width (mm): 5300

Related products

The whole category

Manufacturer

GONGZHENG

GONGZHENG manufactures digital printing equipment and has operated since 1997. Its range includes UV, eco-solvent, solvent, sublimation and DTF printers. These are distinct equipment groups, not printing modes available on a single machine. When choosing a GONGZHENG printer, start with the material to be printed and the workpiece format. Then compare the specific model's inks, material feed and finishing steps required after printing. The manufacturer's overall technology range does not replace the technical data for the selected model.
