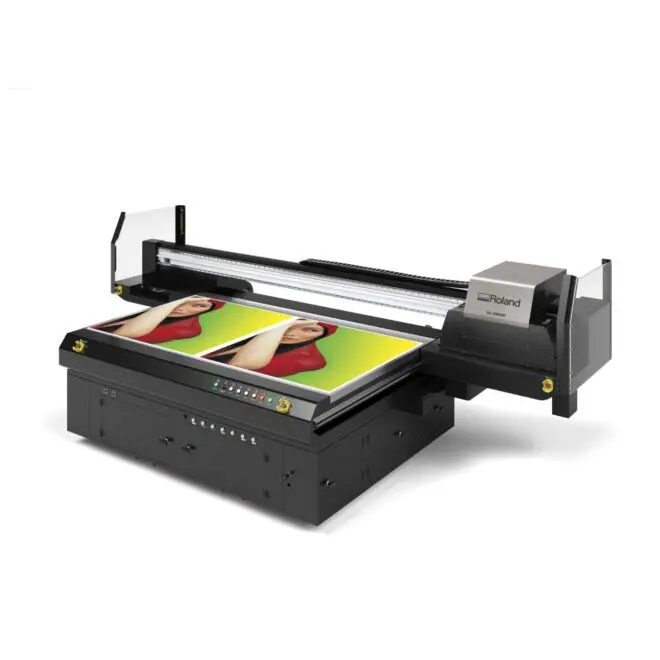

Roland IU-1000F

Impressive Versatility On Materials Up To 110mm in Height and
45 kg/sqm in Weight

High density, high adhesion UV inks are compatible with an impressive variety of substrates including acrylic, PETG, PVC board, foam board, polycarbonate, wood, corrugated polypropylene board, aluminium composite plate, metal and glass*.

^{*Primer may be needed for glass, metal, aluminium and acrylic.}

Vehicle Wraps and Graphics — **FURNITURE**
Print directly onto a wide range of substrates to create stunning customised furniture and accessories.

Backlits — **CANVASES**
Add graphics to canvas for high-volume displays, gallery and décor solutions. Add brush strokes, textures and artistic Gloss ink effects to canvases for bespoke fine art products.

Wall Graphics — **RETAIL STORES**
Print directly onto sheets of PVC, corrugated and foam board, and banner material to create an industrial print solution for customising high volumes of retail signs, POP displays and promotions. Add 3D textures and embossed effects for a high-end look and feel.

Die-Cut Labels and Decals — **INTERIOR DECORATION**

BACKLITS

Model		IU-1000F
Printing technology		Piezoelectric inkjet
Media	Maximum size	2510 mm (W) × 1310 mm (L) (98.8 × 51.5 in.)
	Maximum thickness	110 mm (4.3 in.)
	Maximum weight	45 kg per sqm (99lb per sqm)
Maximum printing area		2500 mm (W) × 1300 mm (L) (98.4 × 51.1 in.)
Ink	Type	UV Curable Ink
	Colour	Six colours (Cyan, Magenta, Yellow, Black, White and Gloss) and Primer
	Ink bottle capacity	C,M,Y,K,Gl,Pr: 1000 cc Wh: 900 cc
	Ink tank capacity	2500 cc per colour
Ink curing unit		UV-LED lamps x 2
Print resolution (dots per inch)		Max. 635 × 1800 dpi
Media vacuum system		Four independent areas with adjustable vacuum pressure
Connectivity		USB3.0
Power requirements		EMEA 25A 3-phase 400 V
Acoustic noise level		75 dB (A) or less
Dimensions		4812 (W) × 2200 (D) × 1580 (H) mm (189.4 × 86.6 × 62.2 in.）
Weight		1436 kg (3166 lb)
Environment	Temperature	15 to 30℃ (59 to 86℉)
	Humidity	40 to 80%
Included items		Software, USB cable, cleaning kit, CD manuals, etc.

Software System Requirements
Print control (bundled)	Operating system	Windows® 10 Pro (64bit)
	CPU	Intel® Core™ i5, 2 GHz or more
	RAM	8 GB or more
	Video card and monitor	A resolution of 1152 × 854 with 16 bit colour or higher
	Optical drive	CD/DVD drive
	USB	USB 3.0 port
	Free hard-disk space (HDD)	Install space1 GB or more – Working space 100 GB
Ergosoft Roland Edition Special Plus(optional)	Operating system	Windows® 10 (64bit)
	CPU	Intel® Core™ i7, 4.2 GHz or more
	RAM	8 GB
	Screen resolution	Display resolution of 1600×900 or higher
	Optical drive	CD/DVD drive
	Free hard-disk space (HDD)	Minimum Single Disk Space 512 GB
		Recommended: 2 Solid State Disks
Internet connection required for licence activation and service

Model		Description
Standard UV Ink	US-CY	Cyan 1000 cc
	US-MG	Magenta 1000 cc
	US-YE	Yellow 1000 cc
	US-BK	Black, 1000 cc
	US-WH	White 900 cc
	US-GL	Gloss, 1000 cc
	US-PR*	Primer 1000 cc
Maintenance Kit	IU-MNTKIT	Carriage filter 8 Pcs. / Absorber 6 Pcs.
Cleaning Kit	IU-CLKIT	Box of paper towels (1 Pc, 50 sheets) Box of non-woven fabric (1 Pc, 100 sheets) Polyethylene gloves 7 Prs Nitrile rubber gloves 14 Prs Cleaning sticks 12 Pcs
Cleaning Liquid	US-CL	Cleaning liquid, 500 cc
_{*Primer ink adhesion may vary depending on substrate and conditions.Testing ink adhesion in prior to production is recommended. Specifications, designs and dimensions listed may be subject to change without notice.}
