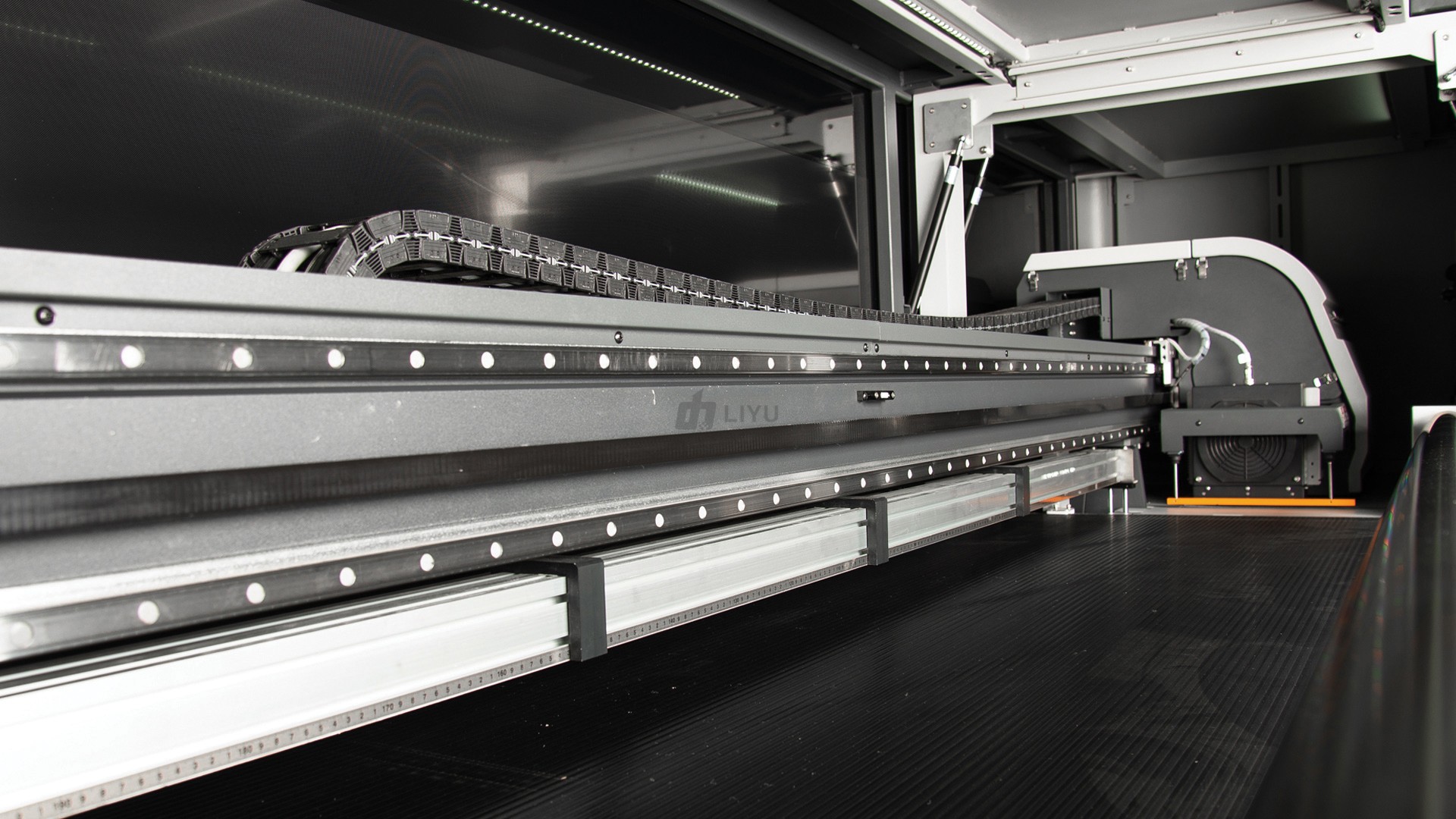

LIYU PLATINUM Q2 HYBRID

Materials with different specifications and thicknesses (50 mm) which can be used in sectors such as promotion, advertisement, furniture, decoration, glass, textile, etc. prints with high resolution and much better quality with 2880 dpi and 13 Pl Thanks to the strong quadro local vacuum, which is designed for the printing system, UV Hybrid provides that the material to be printed is grasped firmly. By means of this grasping, it’s possible to make photograph-quality prints on the material to be printed from a height of 1 mm. Platinum Q2 Hybrid is also able to print on various type of roll materials such as vinly, banner etc.

Color ScaleCMYK + Lc + Lm + W + V
Drop Volume6 Pl. – 13 Pl. – 7 Pl. – 5 Pl.
Drying SystemUV Curing – LED Curing
HardwareLCD Monitor
Ink TypesUV – LED
Machine Weight2000 kg.
Power Requirements230v (+/-) 10% / 40A / 50HZ / 60HZ
Print HeadsKonica Minolta 1024i – Ricoh Gen5/Gen6
Print Height50 mm
Print Resolution2880 DPI – 1200 DPI – 2400 DPI
Print Speed Up to100 m2/h
Print Width2050 mm
Printhead Quantity16 (Max.) – 8 (Max.) – 6 (Max.)
RIP SoftwarePhotoPrint – Caldera (Opt.)
