Siser TS Due

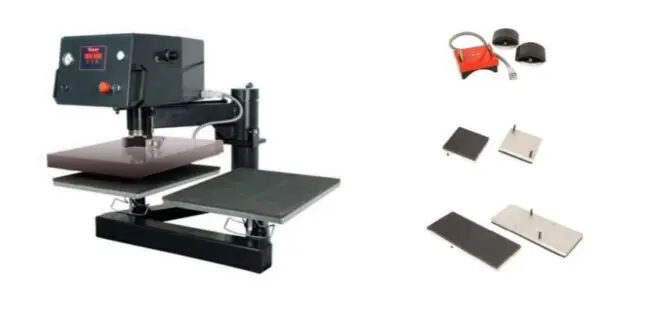

TS DUE is an automatic heat transfer press providing a pneumatic function and a double supporting plate, suitable for all kinds of applications on textiles (thermotransfer materials, plastisol, sublimatic).
The upper plate opens automatically swivelling to the side ensuring operating safety. Its versatility allows the operator to print on objects with a maximum thickness of 50 mm (aluminium, ceramics…)
Printing plates (15 x 15 cm or 15 x 38 cm) and cap sets are optional and available at extra cost.

Power 2000 watt
Voltage 220 volt
Weight 100 Kg
Transfer area 40 x 50 cm
Platen size 100 x 80 x 70 cm (L x H x P)
Operative area 100 x 80 cm
Basement area 60 x 70 cm
Max. temperature 250°C
Contact pressure 1,2 – 1,5 Kg/cm² (2,5 – 10 bar)
Other platens platens for caps
platens 15 × 15 cm
platens 15 × 38 cm

Download Technical Data Sheet

Download User Manual
