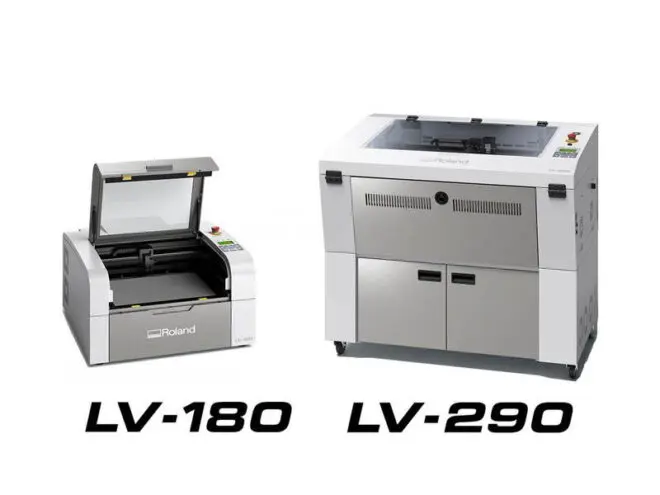

Roland LV-290, LV-180

Engrave, Cut and Build Your Business
with Hundreds of Applications

Whether you’re launching a new personalisation business, want to add value to existing product lines, or are a manufacturer looking to increase efficiency by bringing production in-house, Roland’s LV laser engraving machines add so much choice and product diversity. Add photos, art, or text onto existing products or cut out your own items for marking or engraving.

Key chains — **INTERIOR DÉCOR AND ART**
**Cut intricate shapes out of wood, card, and plastic materials to fabricate uniquely brilliant products and prototypes for art projects, games, décor, models and more.**

Acrylic flower POP — **GIFTWARE**
**Precisely engrave or mark on souvenirs, picture frames, memento boxes, keychains, glass ornaments and more, transforming them into personalised, profitable gift items.**

Shop signs — **PERSONALISED GOODS**
**Laser engrave customer names, photos and messages on leather to create a huge range of personalised products, including water bottle covers, key fobs and more.**

Puzzles — **JEWELLERY AND FASHION ACCESSORIES**
Mark designs onto coated metal items like watches, tools, bracelets, earrings and rings or engrave onto soft goods like leather purses, bags and fabric products. You can also cut out your own pendants, bracelets and other accessories from leather and acrylic and create stunning cut and engraved wooden jewellery.

Water bottle cover — **ACRYLIC LETTERS, SIGNS AND TROPHIES**
Pair your LV with a VersaUV LEF flatbed printer for a complete laser-cutting and print customisation workflow to offer your customers something truly special. Ideal for personalising gifts and promotional items and producing high-end personalised signs and trophies.

Wood pierced earrings — **STATIONERY ITEMS**
**Create unique engraved and cut designs for high-end notebooks, portfolios and photo albums. Precisely engrave and mark on pens and other stationery items.**

Optional Air Compressor to Maintain Your Engraver Effortlessly

Roland LV series laser engravers can connect directly to a specially engineered air compressor. This system maintains the air pressure at optimal levels to remove vaporised particles, helping to keep lenses and mirrors clean and lasers working for longer. Its oil-free diaphragm also helps to remove moisture, which may otherwise damage the laser optics. You can activate the air compressor automatically only when required.

Engrave or Mark Cylindrical Objects

The optional rotary devices can easily be added to LV series laser engravers in minutes letting you add details to items like jars, bottles and cans up to 360º.

Create custom bottles and packaging for boutique brands, produce water bottles, cans and mugs, personalise cosmetics containers, gifts and much more.

• Rotary attachment (LV-180 and LV-290)
• Rotary chuck (LV-290 only)

LV air compressor — **STATIONERY ITEMS**
**Create unique engraved and cut designs for high-end notebooks, portfolios and photo albums. Precisely engrave and mark on pens and other stationery items.**

Optional Air Compressor to Maintain Your Engraver Effortlessly

Roland LV series laser engravers can connect directly to a specially engineered air compressor. This system maintains the air pressure at optimal levels to remove vaporised particles, helping to keep lenses and mirrors clean and lasers working for longer. Its oil-free diaphragm also helps to remove moisture, which may otherwise damage the laser optics. You can activate the air compressor automatically only when required.

Engrave or Mark Cylindrical Objects

The optional rotary devices can easily be added to LV series laser engravers in minutes letting you add details to items like jars, bottles and cans up to 360º.

Create custom bottles and packaging for boutique brands, produce water bottles, cans and mugs, personalise cosmetics containers, gifts and much more.

• Rotary attachment (LV-180 and LV-290)
• Rotary chuck (LV-290 only)

Model	LV-290	LV-180
Laser source	40W CO₂ laser	30W CO₂ laser
Work Area	When with SmartVISION Pro CCD: 550 x 440 mm (21.6 x 17.3 in.) When without SmartVISION Pro CCD: 640 x 460 mm (25.1 x 18.1 in.), Extendable to 740 x 460 mm (29.1 x 18.1 in.)	458 x 305 mm (18 x 12 in.)
Maximum Part Size (W x L x H)	762 x 482.6 x 165 mm (30 x 19 x 6.4 in.)	505 x 309 x 170 mm (19.8 x 12.1 x 6.6 in.)
Table size	790 x 530 mm (31.1 x 20.8 in.)	520 x 375 mm (20.4 x 14.7 in.)
Dimensions (W x L x H)	1125 x 720 x 1005 mm (44.2 x 28.3 x 39.5 in.)	740 x 780 x 410 mm (29.1 x 30.7 x 16.1 in.)
Weight	167 kg (369 lb)	75 kg (166 lb)
Cooling	Air-cooled. Operating environment temperature 15°-30°C (60° – 86°F)
Drive	Closed-loop DC Servo control
Maximum Motor Speed	When with SmartVISION Pro CCD: 1016 mm/s (40 in./s). When without SmartVISION Pro CCD: 1524 mm/s (60 in./s)	1016 mm/s (40 in./s)
Speed Control	Adjustable from 0.1-100% (Up to 16 colour-linked speed settings per job)	Adjustable from 0.1-100% (Up to 16 colour-linked speed settings per job)
Power Control	Adjustable from 0-100% (UP to 16 colour-linked power setting per job)	Adjustable from 0-100% (Up to 16 colour-linked speed settings per job)
Distance Accuracy	0.254 mm or 0.1% of move, whichever is greater
Z-Axis Movement	Automatic
Focus lens	Standard 2.0 in., optional 1.5 in., 2.5 in. and 4.0 in. available	Standard 2.0 in., optional 1.5 in. available
Resolution (DPI)	Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500
Computer Interface	Full-speed USB 2.0 port, 10 Base-T Ethernet
Memory Buffer	32MB standard
Compatible Operating Systems	Windows® 7, 8.1, 10
Display Panel	4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus.
Safety	Class I Laser Product Compliant with EN60825
	Class II Laser Product Compliant with CDRH
	2006/42/EC Machinery Directive Compliance
Operation Voltage	100-240VAC, 50-60Hz Auto Switching, max. 15A	100-240VAC, 50-60Hz Auto Switching, max. 12A
Fume Extraction System	External exhaust system required, one 4 in. connection on the back of the machine
Included items	Power cable, ethernet cable, USB cable, user’s guide, cleaning tissue, mirror cleaner, etc.

_{Specifications are subject to change without prior notice.

Caution—Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.}

Model	תיאור
HT-180	Replacement Honeycomb Table for LV-180
GT-290	Replacement Grid Cutting Table for LV-290
FL15	1.5 in. Focus lens for LV-290 / LV-180
FL20	2.0 in. Focus lens for LV-290 / LV-180
FL25	2.5 in. Focus lens for LV-290
FL40	4.0 in. Focus lens for LV-290
29005363G	Rotary Attachment for LV-180
29001051G	Rotary Attachment for LV-290
29006016G	Rotary Chuck for LV-290

Download brochure
